Get the wiring wrong and you'll see it: flickering fixtures, dim spots at the end of a run, or corroded connectors after one humid Florida summer. The 2023 NEC 210.8(F) rule requires GFCI protection for dwelling-unit outdoor outlets on circuits rated 150V or less, and that's just the starting point Eaton's 2023 NEC update confirms.
This guide walks through planning, tools, step-by-step installation, and troubleshooting, drawing on lessons LED Artistry has picked up installing coastal lighting systems across Tampa Bay for over a decade.
Key Takeaways
- Low-voltage LED systems outperform line-voltage on safety, install cost, and energy use
- Voltage drop is the #1 cause of dim or flickering deck lights
- Stair light placement is the step most DIY deck installs get wrong
- Florida's humidity and salt air demand marine-grade fixtures and connectors
- Pro installation locks in code compliance and longer system reliability
Installation Guide for Deck Lights
Deck lighting installation follows a predictable sequence: plan the layout, size the transformer, run and connect wiring, mount fixtures, then test everything under load. A single post-cap light project is a weekend job. A whole-deck system covering stairs, rails, and recessed lighting is different. Expect a full day of work minimum, and often a professional crew, to get the wiring code-compliant and the voltage balanced across every fixture.
Prerequisites and Safety Considerations
Before drilling a single hole, confirm you have the right setup:
- A GFCI-protected outdoor outlet within reach of the deck (Kichler recommends mounting the transformer within 8 ft of the outlet, at least 12 inches above ground)
- Accessible framing for running wire without tearing up finished decking
- Clear post, rail, and stair surfaces free of obstructions before drilling Check compatibility before selecting fixtures and a transformer:
- Match AC and DC fixture types; never mix them on one circuit
- Use the same brand for transformer and lights where possible

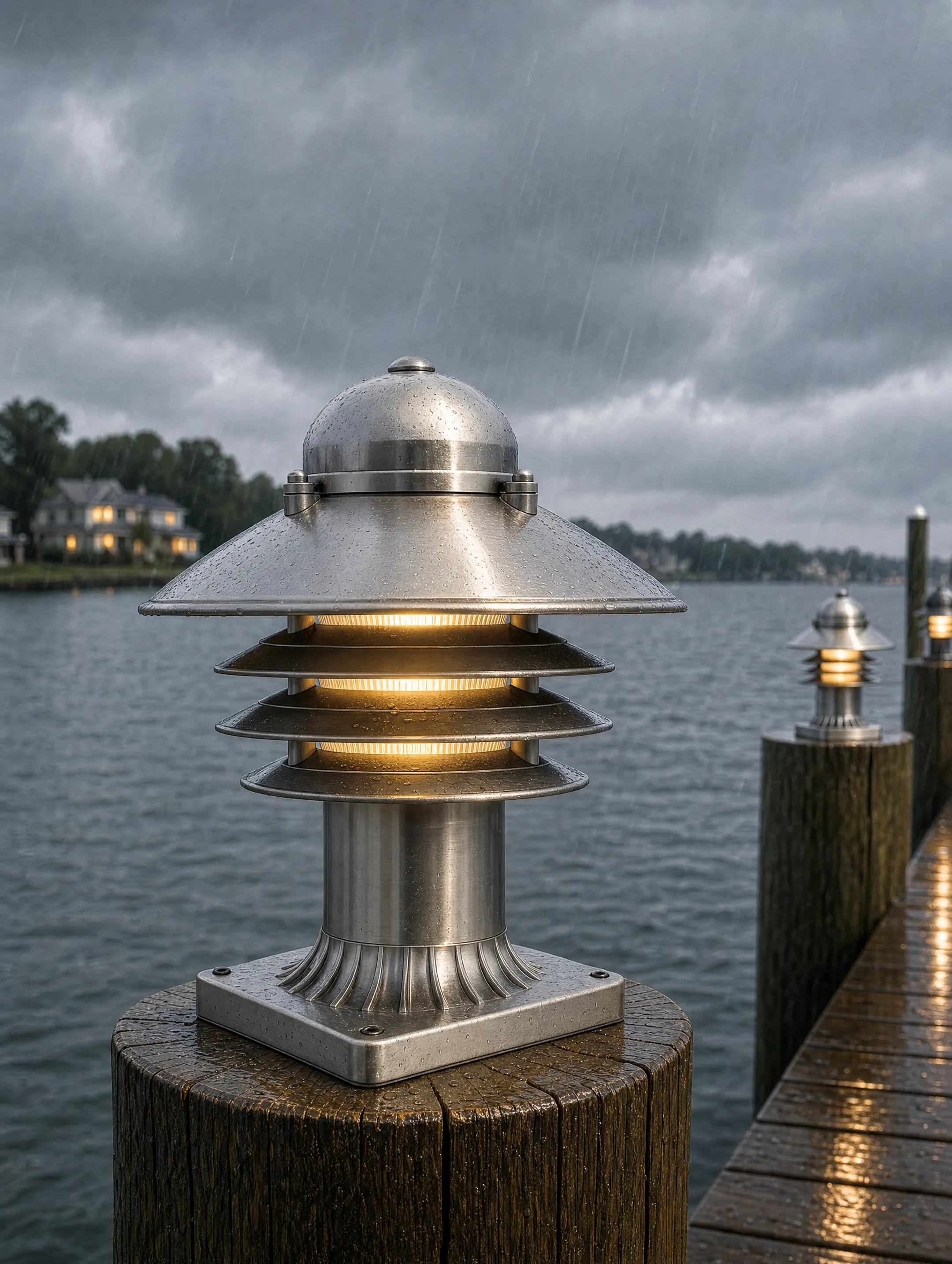

- Verify wire gauge against total wattage and run length, not just fixture count Florida homeowners have an extra layer to think about. Humidity and salt air chew through standard aluminum fixtures fast. LED Artistry's technicians have seen unprotected aluminum fail within 18 to 24 months near the coast. Marine-grade brass, copper, or 316-grade stainless steel fixtures develop a protective patina instead of pitting, which is why they're the standard choice within a few miles of the Gulf. Three non-negotiables:
- Never mix AC/DC fixtures on the same circuit
- Never use extension cords between the outlet and transformer
- Never skip weatherproof, in-use GFCI covers
Tools and Parts Required
For a recessed or post-light system, you'll need:
- Power drill with a hole saw bit sized to your fixtures
- Wire strippers and cutters
- Low-voltage cable (gauge depends on run length and load; details below)
- Wire connectors and splitters rated for outdoor use
- A transformer sized to your total wattage
- Cable staples for securing runs along framing Plug-and-play solar lights skip most of this list entirely, but they also skip the performance and consistency a wired system delivers. On wire gauge: 12-gauge wire handles runs up to 100 feet at loads of 100 watts or less. Runs between 100 and 200 feet, or heavier loads, usually call for 10-gauge wire to prevent voltage drop. Painter's tape and temporary clips work fine for holding wire in place before you commit to final stapling.
How to Install Deck Lights (Step-by-Step)
Skipping steps here doesn't save time. It moves the problem downstream. Undersized wire or a rushed load calculation shows up later as dim lights, shorts, or water damage.
1. Preparing the Site
Map out your lighting plan first. Identify stairs, posts, rails, and walkways, then measure wire runs and mark drill points. This step determines everything that follows, so don't rush it.
2. Positioning and Securing Fixtures
Drill holes sized precisely to your fixture specs, whether that's post caps, stair risers, or recessed lights. Check for hidden obstructions (wiring, plumbing, or structural blocking) before you drill. Seat each fixture firmly and fasten it with the specified hardware so foot traffic and vibration don't loosen the fit.
3. Integrating with the Electrical System

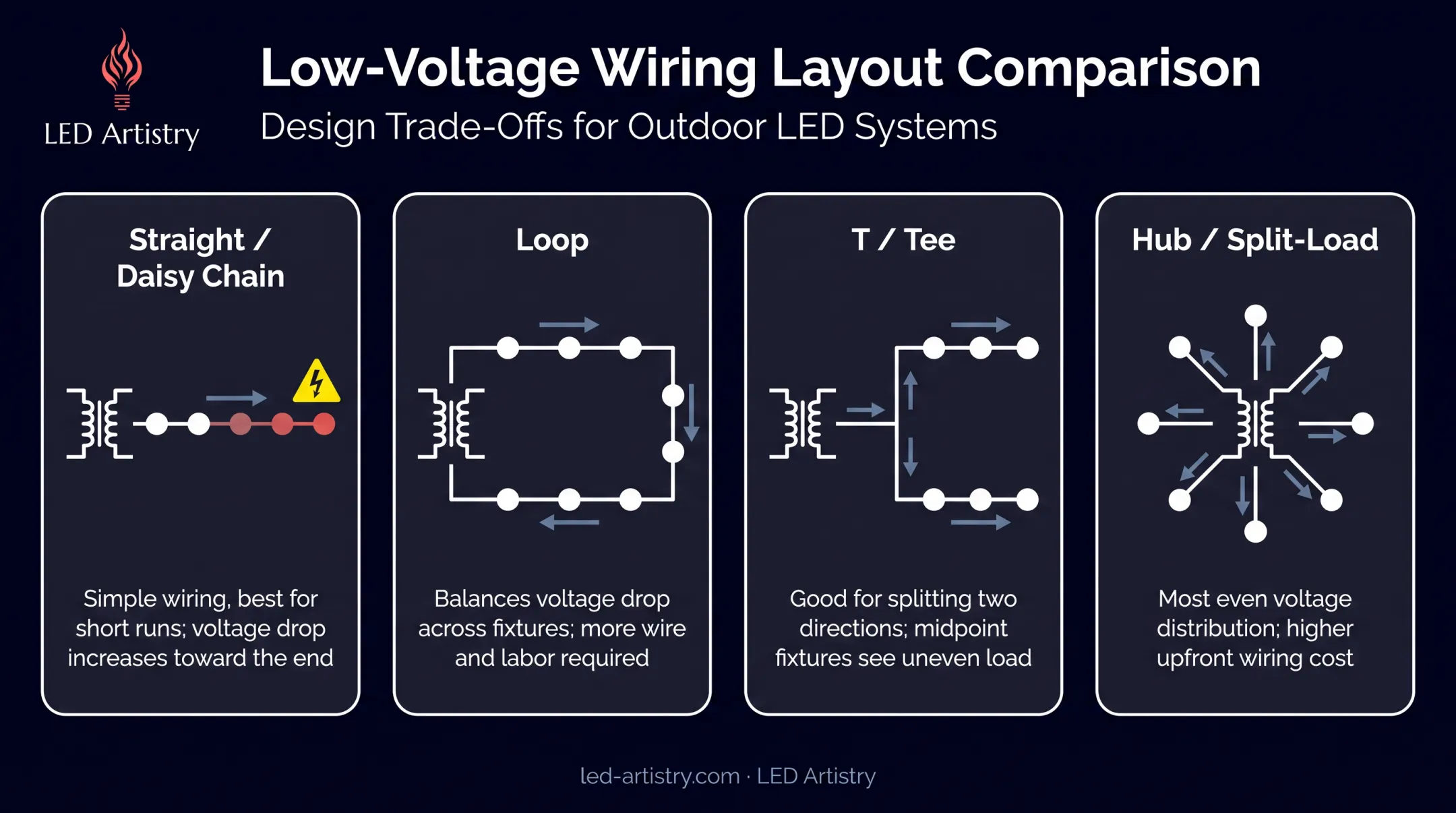

Connect fixtures to a properly sized transformer using one of four layouts:
| Layout | Best For | Trade-off |
|---|---|---|
| Straight/daisy chain | Short, low-load zones | First fixture gets more voltage than the last |
| Loop | Retrofit voltage-drop fixes | Doubles wire, more connection points |
| T/tee | Balanced fixture groups | Effectively halves voltage drop per side |
| Hub/split-load | Distributed clusters | Easier to test, more planning upfront |
A loop layout generally reduces voltage drop and holds up better on larger decks, since power reaches both ends of the run rather than fading out toward the last fixture.
4. Initial Configuration
Secure wiring along the deck framing with cable-safe staples every couple of feet. Seal any unused connections completely. This is where corrosion starts. Mount the transformer near the weatherproof GFCI outlet, keeping it elevated off the ground.
A note on sizing the transformer: calculate your total fixture wattage, then keep planned load at or below 80% of the transformer's rated capacity. A 300-watt transformer, for example, should carry no more than 240 watts, leaving headroom for future additions.
Post-Installation Checks and Validation
Don't call the job done just because the lights turn on.
Visual and structural checks:
- Fixtures sit flush and level
- Wiring is fully concealed with no pinch points
- Wiring is fully concealed with no pinch points
- Mounts are tight and connections are sealed against moisture
Functional testing:
- Power on the full system and watch for flickering, dim spots, or uneven brightness across zones
- Use a multimeter to confirm each fixture is receiving roughly 10.5 to 12 volts
- Use a multimeter to confirm each fixture is receiving roughly 10.5 to 12 volts
- Confirm timers, photocells, zone dimmers, and GFCI protection operate as designed
Consistent brightness across every fixture signals a properly wired system. Dimming that gets worse toward the end of a run points to voltage drop or undersized wire — go back and check your gauge and layout.
Skipping this validation step doesn't mean nothing's wrong. It just means the problem shows up later, as a corroded connection or an overloaded transformer discovered months down the line, usually after dark, usually when you have guests over.
LED Artistry builds this validation into every install—voltage checks, zone balancing, and a nighttime walkthrough before the crew leaves. Ongoing maintenance visits catch corrosion and load issues early, so problems don't wait until you have company over.

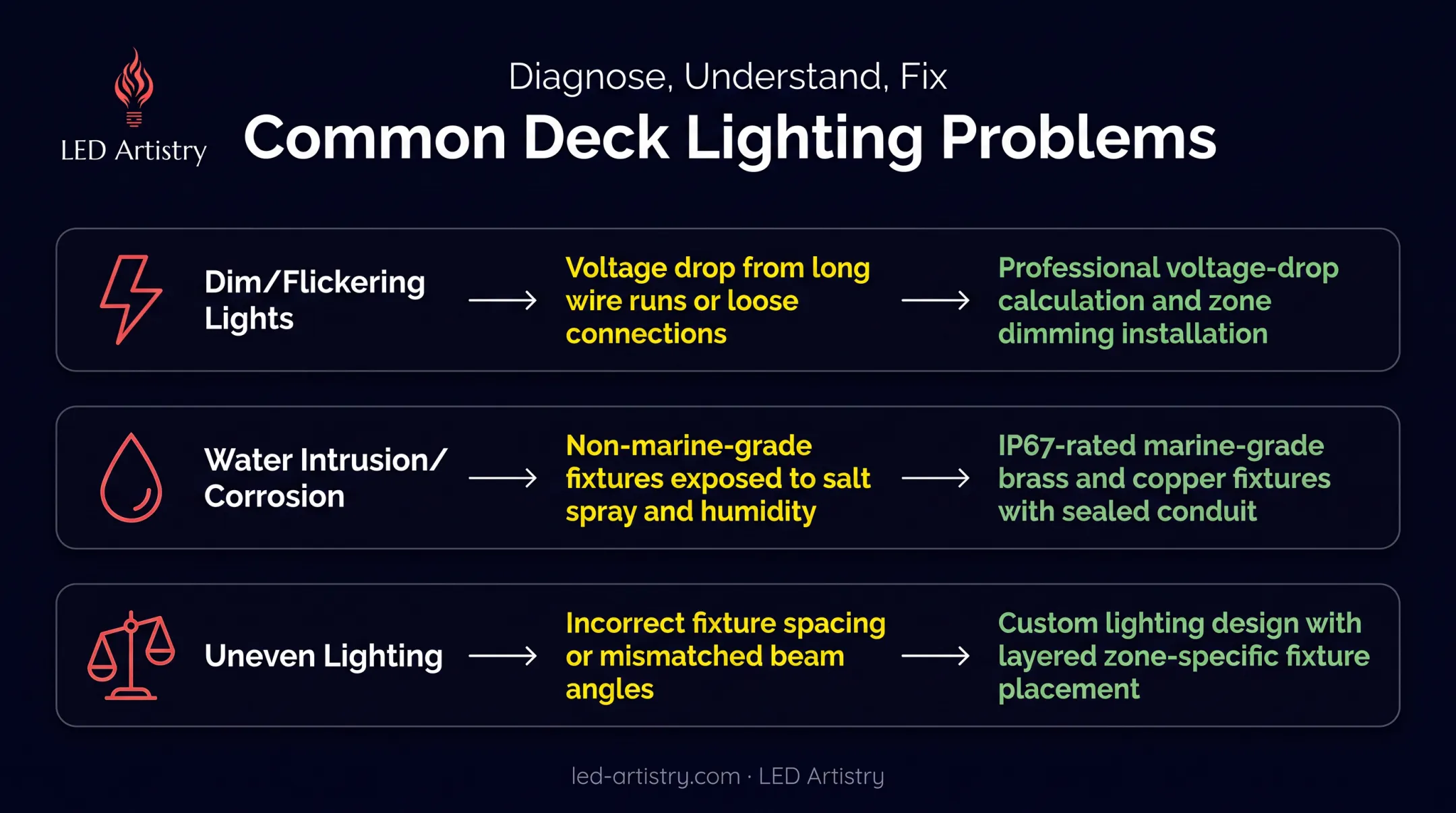

Common Installation Problems and Fixes
Most deck lighting issues trace back to wiring, weather sealing, or fixture placement. Catch them early and the fixes stay straightforward.
Dim or Flickering Lights
Problem: Fixtures at the end of a run look noticeably dimmer or flicker.
Cause: Voltage drop from wire that's too thin, a run that's too long, or a loose splice. Even a poor connection can cause a 2- to 3-volt loss.
Fix: Switch to a thicker gauge wire, or reconfigure to a loop or split-load layout to balance the load.
Water Intrusion or Corrosion
Problem: Fixtures fail or short out after rain or humidity exposure.
Cause: Non-weatherproof connectors, or fixtures not rated for coastal or humid climates.
Fix: Use marine-grade, gel-filled sealed connectors and fixtures rated IP65 or higher (IP67/IP68 for anything near water).
Uneven or Poorly Placed Lighting
Problem: Some deck areas are overlit while stairs or corners stay dark.
Cause: Fixtures placed without a real lighting plan, or inconsistent spacing.
Fix: Re-space fixtures every 4-6 feet as a starting point, and prioritize stair treads and transition points where trip hazards are highest.
Pro Tips for Installing Deck Lights Effectively
A few habits separate a clean deck lighting install from one that fails early or fights every repair later.
- Wire before decking goes down. Run cable before final boards are laid so wire is never sandwiched between structure and decking.
- Test before you commit. A temporary nighttime setup lets you fine-tune placement and brightness before anything is permanently mounted.
- Document everything. Record transformer wattage, wire gauge, and layout so future troubleshooting stays fast and accurate.
- Hire a specialist for waterfront or whole-property systems. Coastal exposure and long-term durability exceed what most DIY kits handle. LED Artistry backs its Tampa Bay installations with a 20-year warranty for that reason.
Conclusion
Correct wiring, thoughtful fixture placement, and real weatherproofing separate a deck lighting system that lasts from one that needs constant repair. Plan the layout, size the transformer correctly, and use quality waterproof connectors—especially near saltwater.
For stairs, waterfront exposure, or a full-deck system, a professional install is often the more reliable path. LED Artistry designs and installs marine-grade low-voltage LED systems built for coastal conditions, with free nighttime demos and ongoing support so the result holds up for years, not months.
Frequently Asked Questions
How much does it cost to install deck lighting?
Costs vary based on fixture count, wiring complexity, and whether it's DIY or professionally installed. For accurate Tampa Bay-area pricing, request a personalized quote—ideally after a free nighttime demo on your deck layout.
Do I need an electrician to install outdoor lights?
Low-voltage deck lighting typically doesn't require a licensed electrician for the fixtures and low-voltage runs. Line-voltage work, new circuits, or hardwiring a transformer into your panel does require one.
Can decking lights be left on all night?
Yes. Low-voltage LED fixtures are energy-efficient enough for all-night use. Timers or dimmers can help manage energy costs and set the right ambiance for different times of night.
What is the best way to illuminate my deck?
A layered approach works best: combine stair lighting, post lighting, and perimeter lighting. Together they cover safe footing and comfortable evening use.
Where should I install step lights?
Step lights belong on stair risers or treads, spaced evenly to define each step's edge. Avoid placement that causes glare rather than clear visibility.
What are common stair lighting mistakes?
The biggest ones are inconsistent spacing, fixtures that blind instead of guide, and skipping weatherproofing on exposed stair lights. Any of these turns a safety feature into a hazard.
