Florida's new multifamily lighting requirement, effective January 1, 2025, mandates a minimum of 1.8 foot-candles in parking areas for properties with five or more units, measured 18 inches above the surface, from dusk to dawn. Miss that standard and you lose a legal presumption against liability under Florida House Bill 837.
This guide breaks down foot-candle targets, pole height and spacing, fixture selection, and the Florida-specific dark sky and coastal factors that make west coast parking lots different from a generic national template.
Key Takeaways
- Uniformity matters as much as raw brightness: an even 2 fc lot often feels safer than a patchy 5 fc one
- Pole spacing generally runs 2-3x the mounting height, with 20-25 ft poles as the commercial sweet spot
- Type III fixtures belong on the perimeter; Type V works best in the interior
- Tampa Bay municipalities and HOAs often restrict pole height, CCT, and light trespass beyond baseline guidelines
- A nighttime demo before installation prevents expensive redesigns later
Understanding Foot-Candle and Uniformity Requirements
A foot-candle (fc) measures how much light actually reaches a surface. It's the metric inspectors, insurers, and lighting designers use to judge whether a lot is adequately lit, not just "bright."
Florida's multifamily requirement of 1.8 fc (effective January 1, 2025) applies specifically to parking areas at five-plus unit properties. For other commercial applications, targets vary by activity level and location within the lot:
| Area | Typical target range |
|---|---|
| General parking, low activity | 0.3 - 1.2 fc average |
| General parking, medium activity (retail, civic) | 0.8 - 3.2 fc average |
| Entrances, exits, high-traffic zones | Above general lot average (often the brightest zones) |
| Pedestrian crosswalks | Higher than adjacent pavement for visibility |
Note: exact figures depend on your specific municipality and IES design guidance current at the time of your project. A licensed lighting designer should confirm final numbers against your local code.
Why Uniformity Beats Brightness

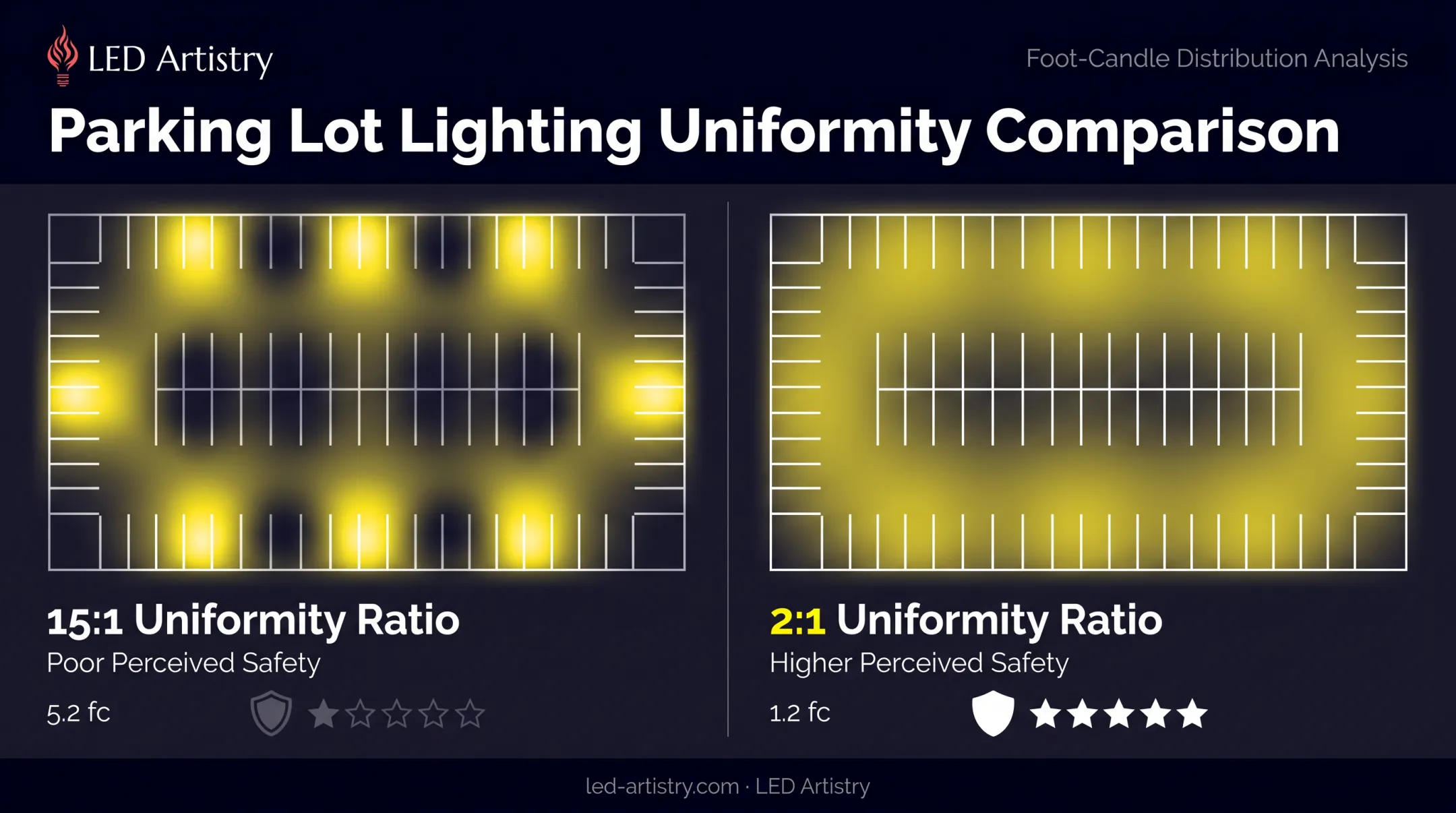

Here's the part most property owners miss: cranking up wattage doesn't automatically make a lot feel safer. A 2019 CIE research paper found that at the same average light level, lots with a lower max-to-min uniformity ratio scored significantly higher on perceived safety.
Their modeling suggested you'd need roughly 56 lux (~5.2 fc) at a 15:1 ratio to match the safety rating of just 13 lux (~1.2 fc) at a 2:1 ratio.
In plain terms, dark pockets scare people more than moderate overall dimness. A modern 15:1 uniformity ratio is increasingly treated as a baseline for security-focused parking lot design.
What that means on the ground:
- Fewer hot spots that waste light and create glare
- Fewer deep shadows that hide trip hazards
- More even coverage across stalls, drives, and walk routes
Florida heat and humidity add another wrinkle: fixtures must hold lumen output for years, not just on day one. When output drops unevenly, average foot-candles and uniformity both slip. A nighttime walk-through shows real coverage—including where dark zones fall—before the design is locked in. LED Artistry's complimentary demo is built around that check.
Pole Height and Spacing: Getting the Layout Right
The general rule of thumb: space poles at 2-3x the mounting height. A 20-foot pole, for example, would typically sit 40-60 feet from its neighbor. This isn't an official IES hard rule, but it's a widely used starting point that a photometric layout will refine for your specific site.
| Pole height | Typical spacing | Best use |
|---|---|---|
| 15-20 ft | 30-50 ft | Smaller lots, HOA common areas, height-restricted zones |
| 20-25 ft | 40-70 ft | Standard commercial lots, most Tampa Bay retail/office |
| 25-30 ft | 50-90 ft | Large lots, big-box retail, high-volume sites |
20-25 ft poles are the commercial sweet spot across Florida's west coast. They balance coverage, fixture cost, and compliance with local height caps.
Local height caps vary more than many owners expect. Fort Myers Beach caps parking-lot poles at 15 ft, dropping to 12 ft within 50 ft of residential zoning. Fort Myers allows up to 25 ft.
Tampa, Hillsborough County, and Pinellas County rules change by zoning district and HOA covenant, so confirm limits with your building department before you lock a layout. Redesigning a photometric plan after poles are ordered is expensive.
Other layout factors:
- Retrofit projects can often reuse existing pole foundations, cutting excavation costs substantially
- Wind load matters near waterfront properties — Florida's building code uses 3-second gust speeds ranging from 115 to 180 mph depending on category and exposure
- Corrosion resistance isn't optional for coastal poles; salt air degrades unprotected metal fast
Choosing the Right Fixture Type and Lumen Output
Two distribution types cover most commercial parking lot layouts:
- Type III fixtures throw light asymmetrically, forward and to the sides. They belong on perimeter poles, angled to face inward so light spreads across the lot instead of spilling onto neighboring properties.
- Type V fixtures distribute light in a circular, symmetric pattern. These work best on interior poles where you need even coverage in all directions.
The standard layout puts Type III around the edges and Type V in the middle.
Estimating Lumen Needs
Lumen requirements depend on lot area, target foot-candle level, and ground utilance (how much emitted light actually lands where you want it).
Commercial fixtures range from roughly 3,400 lumens for smaller applications up to 65,000+ lumens for large-area lighting. That spread is why generic "lumens per pole" rules fall apart. A photometric calculation, not a rule of thumb, should drive fixture selection.
LED vs. Older HID Systems
LED fixtures have largely replaced metal halide and high-pressure sodium for new commercial installations. Practical advantages include:
- 50,000–100,000 hour lifespans versus roughly 15,000 hours for HID
- Major energy savings (one Tampa Bay commercial upgrade reported a 72% drop in nighttime use)
- More even, predictable light patterns than older HID lamps
Coastal and humid sites need durability as much as raw output. LED Artistry installs marine-grade, low-voltage LED systems built for Florida conditions, where salt exposure can ruin standard fixtures within a few years.
Dark Sky Compliance, Light Trespass, and Local Code
For parking lot projects, Florida's coastal municipalities often layer stricter rules on top of general lighting guidance. Three areas deserve attention:
CCT and full-cutoff fixtures. Tampa guidance generally favors color temperatures at 3000K or lower. HOA standards commonly land in the 2700K–3000K warm-white range. Full-cutoff fixtures with zero uplight help meet those limits and cut glare for drivers and pedestrians.
Light trespass. Tampa's Chapter 27 addresses spill onto neighboring properties, with a proposed property-line limit around 0.2 footcandles. Treasure Island's Ordinance 12-13 sets a 0.5-footcandle residential property-line limit. Limits vary by jurisdiction—don't assume a neighboring city's rule applies to your lot.
Sea turtle protection. Beachfront-adjacent properties face extra limits during nesting season (May 1–October 31). Lighting visible from the beach must be shielded or redirected.
Before finalizing fixture specs, confirm CCT limits and trespass thresholds with your local building department. What passes in unincorporated Hillsborough County may not pass in Clearwater or on Treasure Island.
Site Assessment and the Professional Design Process
A nighttime site walk should happen before any design work starts. Walking the lot after dark reveals existing dark spots, property line issues, obstructions like mature trees, and where entrance and ADA zones need extra light.
Basic site assessment checklist:
- Lot dimensions and existing pole/foundation locations
- Electrical service location and capacity
- Condition of existing fixtures (repair vs. full replacement)
- Local height, CCT, and trespass restrictions
- ADA-designated spaces and pedestrian crosswalks
LED Artistry's process for Tampa Bay commercial properties follows five steps:
- Consultation to align on goals, constraints, and site conditions
- Custom photometric design mapped to the lot layout
- Free nighttime demonstration with temporary fixtures on-site
- Phased installation to limit disruption
- Ongoing service support after handoff

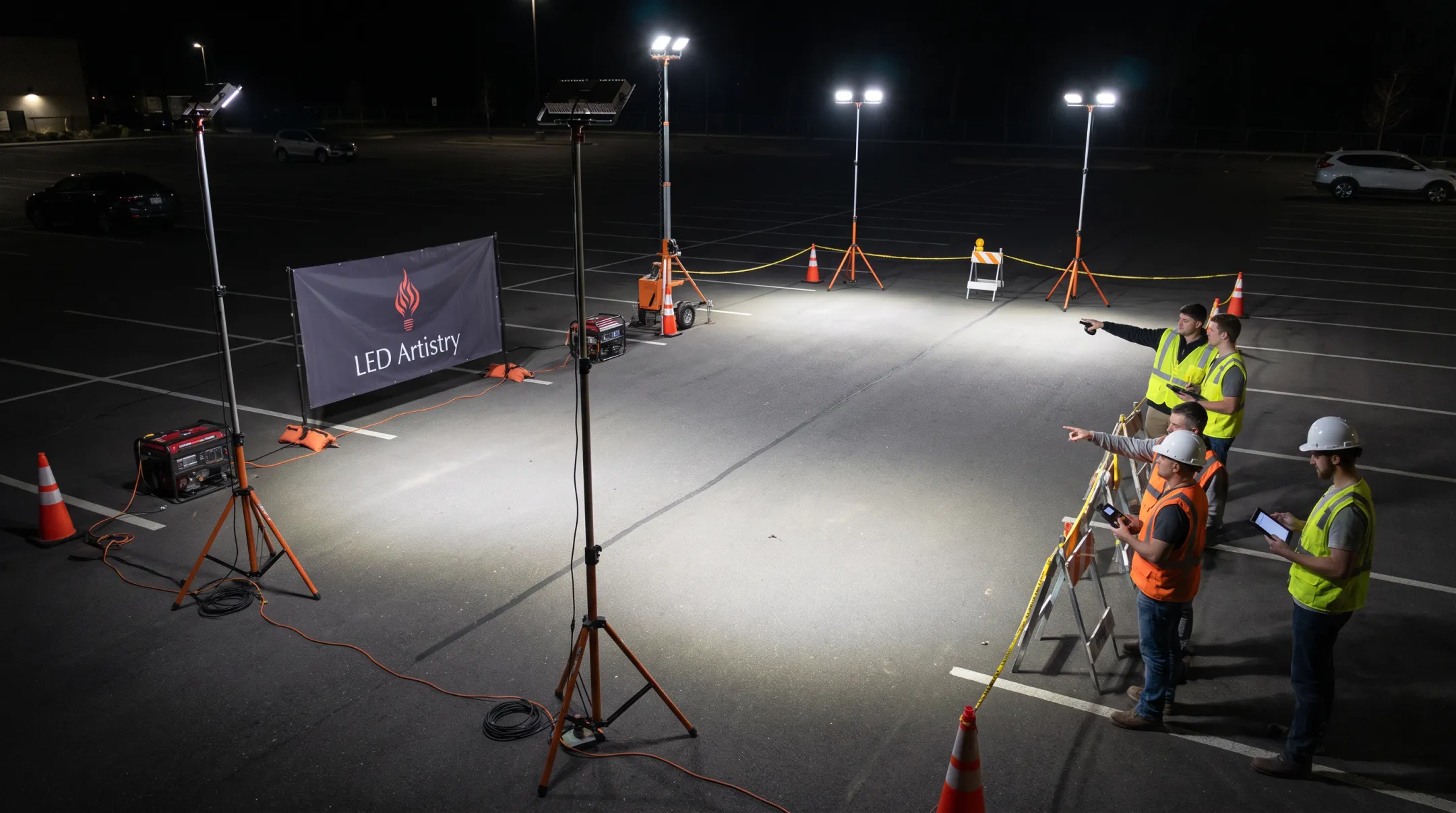

The nighttime demo matters most. Property managers and HOA boards can judge real beam angles and brightness before approving a permanent install. Adjusting a temporary setup costs far less than re-trenching a finished one.
Frequently Asked Questions
What are the best lighting options for parking lots?
LED fixtures are the current standard. They offer far longer lifespans than older HID options, lower energy costs, and more precise, even light distribution across the lot surface.
How many lumens should a parking lot light be?
Commercial fixtures commonly range from around 12,000 to 30,000+ lumens per pole, depending on mounting height and lot size. Exact output should come from a photometric layout, not a general estimate.
How far apart should parking lot lights be?
A common starting rule is 2-3x the mounting height. A 20 ft pole often spaces 40-60 ft apart, though fixture distribution type (Type III vs. Type V) shifts actual spacing needs.
How tall should a parking lot light be?
20-25 ft is typical for commercial lots, but always check local height ordinances first. Some Tampa Bay municipalities cap poles well below that range.
How do I know if my parking lot lighting meets local code?
Check with your municipality or HOA directly, and work with a lighting professional familiar with Florida's coastal and dark sky rules. Requirements shift block by block along the west coast.
