It looks simple. It isn't always. The difference between a wall that looks professionally lit and one that looks like a construction site comes down to fixture placement, beam angle, spacing, and color temperature.
This guide walks through the full process, when uplighting actually makes sense, what equipment you'll need, and the mistakes that trip up even careful DIYers on Florida brick exteriors.
TL;DR

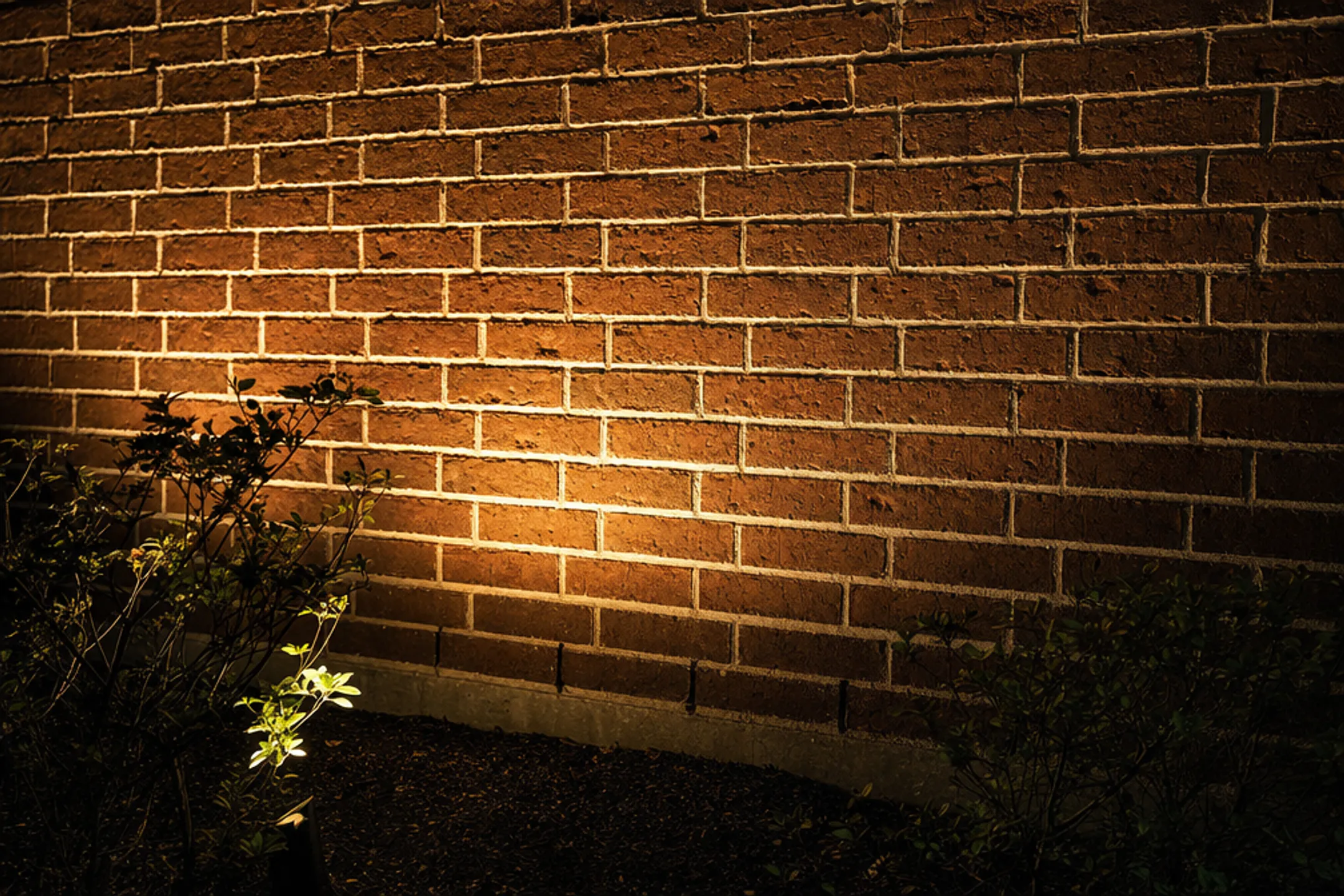

- Uplighting puts fixtures at the wall base to cast light upward, revealing brick texture and mortar lines
- Works best on textured, rough-cut, or reclaimed brick, not smooth painted surfaces
- Requires correct low-voltage spacing, the right beam spread, and warm color (2700K–3000K)
- Most failures come from bad spacing, wrong wattage, or unchecked glare
- A free nighttime demo, like LED Artistry’s, lets you test placement before anything is permanent

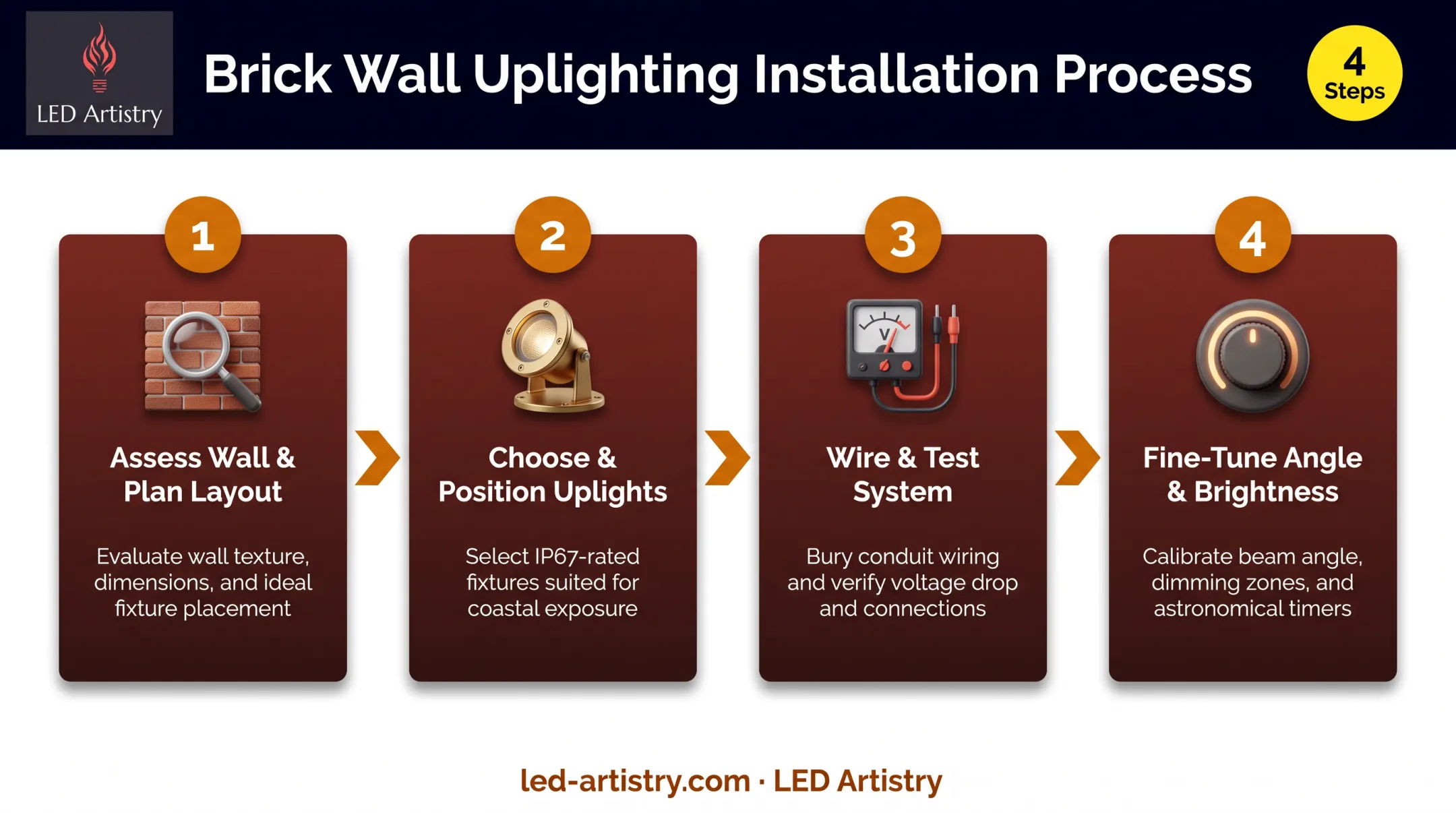

How to Uplight a Brick Wall
Step 1: Assess the Wall and Plan Fixture Layout
Walk the wall twice, once in daylight and once at night. You're looking for texture variation, focal points like columns or arches, and obstructions such as landscaping or downspouts that will block your beam.
Check that the brick is:
- Dry and structurally sound with no loose or crumbling mortar
- Free of major cracks that could interfere with fixture mounting
- Measured for height and setback, since these determine which beam spread and fixture you'll need
Step 2: Choose and Position the Uplights
Select low-voltage LED well lights or spike-mounted uplights rated for outdoor exposure. Position fixtures 6 to 18 inches from the wall base, spacing them so the light pools blend into each other instead of leaving dark gaps.
For coastal Florida properties, fixture rating and materials matter more than most homeowners realize:
- IP65 is the minimum for general outdoor use, protecting against low-pressure water jets from any angle
- IP67 or higher is worth the upgrade near sprinklers, salt air, or heavy rain exposure
- Marine-grade metals (brass, copper, or aluminum) resist salt-air corrosion better than plastic housings
Step 3: Wire and Test the Low-Voltage System
Add up the total wattage of every fixture on the run, then size a transformer with headroom. Keep the connected load at or below 80% of the transformer's rated capacity. Example: fifteen fixtures at 5 watts each equal 75 watts—a comfortable fit on a 150-watt transformer.
Run cable underground or through mulch beds with direct-burial-rated wire. Use gel-filled or heat-shrink connectors, not standard wire nuts; wire nuts let moisture wick in and corrode connections over time. Keep splices away from irrigation lines.
Test the entire circuit before backfilling. Check voltage at the transformer and at the farthest fixture on the run. LEDs perform best between 10.5 and 12 volts. Even one bad splice can drop 2–3 volts and leave the far end of the wall dim or yellowed.
Step 4: Fine-Tune Angle, Beam, and Brightness
Adjust each fixture's tilt so light grazes upward along the brick without spilling onto windows, soffits, or the neighbor's side yard. Confirm your color temperature enhances the brick's natural red or brown tones rather than washing them out.
Walk the property at night, at eye level, from the sidewalk and from inside the house. If you catch glare from any vantage point, adjust the shielding or angle until it disappears.
When Should You Uplight a Brick Wall?
Uplighting isn't the automatic best choice for every brick wall. It depends on texture, purpose, and what's around it.
Good candidates:
- Textured, rough-cut, or reclaimed brick where shadows accentuate depth
- Entryways, columns, and garden walls
- Pool cages and commercial facades that need a strong after-dark presence
Less effective on:
- Smooth or painted brick, where grazing or wash lighting tends to look cleaner
- Very light-colored brick, since uplighting's dramatic shadow effect relies on texture contrast
- Largely flat, unstructured walls, where the beam pattern can look more prominent than the architecture (as ERCO's facade lighting research notes)
What You Need Before Uplighting a Brick Wall
Proper prep prevents having to redo the installation six months later.
Equipment Requirements
- Low-voltage LED well lights or spike fixtures (IP65 minimum, IP67+ for coastal exposure)
- A correctly sized transformer with 20% capacity headroom
- Direct-burial-rated cable (12-gauge for typical runs, 10-gauge for runs over 100 feet)
- Weatherproof, gel-filled connectors
Site and Wall Conditions
Before you place fixtures, confirm:
- Brick is structurally stable with no major cracks
- Enough ground clearance for fixture placement
- Mulch beds and hardscape edges will not block or bury the lights
Planning and Safety Readiness
Low-voltage systems (12-15 volts, generally under 30 volts) typically don't require a full building permit, but adding a new 120-volt outlet or circuit does trigger permitting under the Florida Building Code. Complete these checks either way:
- Follow NEC Article 411 for transformer grounding and bonding
- Confirm your outdoor power source is GFCI-protected, especially near irrigation or pool areas
- Map cable routes and fixture spacing before you dig to limit voltage drop and rework
Key Parameters That Affect Uplighting Results
Installing the fixtures is the easy part. These four variables decide whether the wall looks polished or patchy.
Fixture Spacing
Uneven spacing creates dark gaps or harsh hot spots. Most wall lighting lands in the 4 to 6-foot range, then gets tuned to beam spread.
- Keep spacing consistent enough for even coverage
- Avoid identical intervals that create a repetitive "runway" look
- Nudge spacing slightly to follow the wall's natural rhythm—pilasters, openings, and material breaks

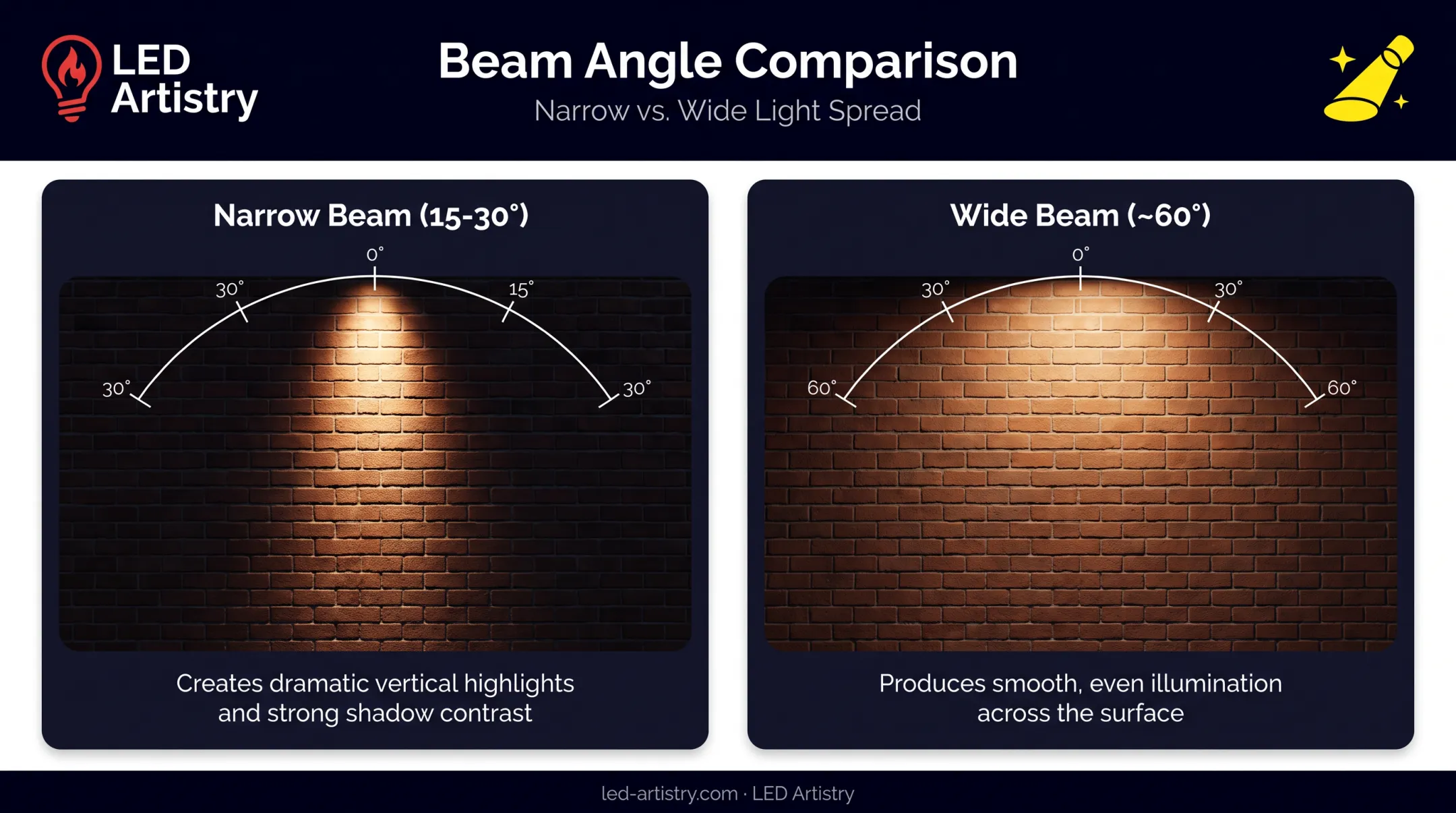

Beam Angle and Spread
Beam choice controls drama versus wash. Match the angle to wall height so light reaches the top without leaving a dark band.
- Narrow (15–30°): Strong vertical highlights and more drama
- Wide (~60°): Smoother, more even wall wash
- Mismatched angle-to-height is one of the fastest paths to uneven coverage
Color Temperature
Warm white in the 2700K–3000K range brings out brick reds and browns. Cooler light flattens that warmth and can make masonry look clinical.
- 2700K: Best starting point for traditional brown-toned brick
- 3000K: Works well on cooler gray brick or contemporary facades

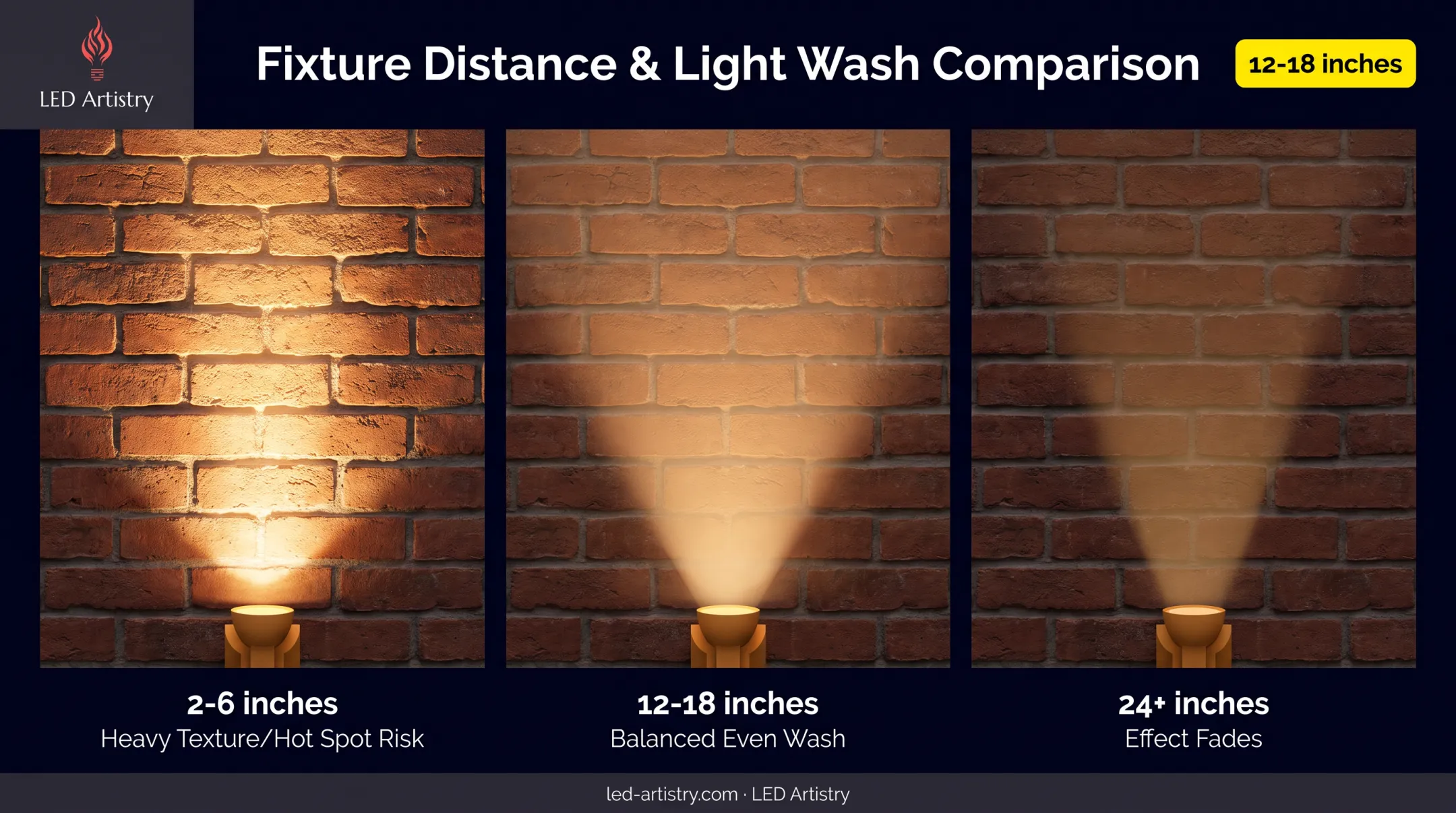

Fixture Distance from Wall
Distance sets the balance between texture and wash. Too close (2–6 inches) exaggerates every mortar flaw. Too far softens the uplight effect until it disappears.
A 300-lumen fixture only 2 inches off the brick can throw a blinding hot spot that hides the texture you meant to show. Most facades look best at 12–18 inches for an even wash. Use tighter grazing only when you specifically want heavy texture emphasis.
Common Mistakes and Troubleshooting When Uplighting Brick
- Skipping the nighttime test. Fixtures that look fine at noon can create glare or dead spots after dark. There's no substitute for seeing it lit.
- Mismatched wattage or color temperature. Mixing fixtures with different Kelvin ratings on the same wall creates a patchy, inconsistent look.
- Placing fixtures too close. This exaggerates imperfections and produces harsh shadows on mortar joints.
- Ignoring voltage drop on long runs. Fixtures at the far end of a run can dim or yellow if the transformer isn't sized correctly for the wire length and load.
A temporary nighttime setup catches these issues before wiring is permanent. LED Artistry includes a free on-site demo so you can test placement, beam angle, and brightness before anything gets buried.
Frequently Asked Questions
What is the best way to light a brick wall?
Grazing, uplighting, wash lighting, and spotlighting each serve different goals. Uplighting is best when you want dramatic, textured emphasis rising from the base of the wall.
Does uplighting damage brick over time?
No. Quality LED fixtures run cool and, when properly installed and weatherproofed, won't cause deterioration of the masonry.
What color temperature works best for brick walls?
Warm tones between 2700K and 3000K bring out the richness of red and brown brick. Cooler temperatures tend to wash out that natural warmth.
How far should uplights be placed from a brick wall?
Generally 6 to 18 inches from the base, depending on wall height and how much texture emphasis you want.
Can I uplight a brick wall myself, or should I hire a professional?
Simple setups are DIY-friendly. Even spacing, transformer sizing, and glare control are where professional design and a nighttime test really pay off.
Is uplighting suitable for all brick types?
No. Textured, rough, or reclaimed brick shows uplighting best. Smooth or painted brick usually looks cleaner with grazing or wash lighting instead.
